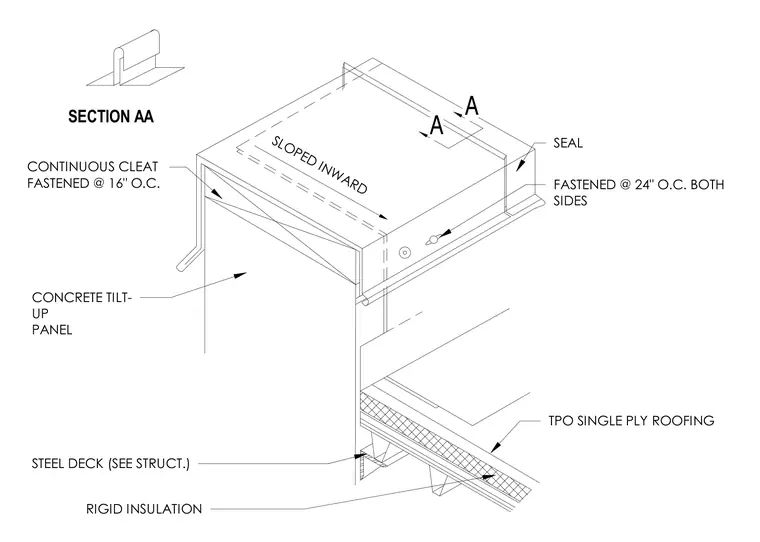

Metal coping cap flashing sits atop a concrete tilt-up wall panel over rigid insulation and a sloped-inward continuous cleat fastened at sixteen inches on center. The cap is sealed and secured with fasteners at twenty-four inches on center on both sides. Below the wall top, the roof assembly features TPO single-ply roofing over rigid insulation supported by a steel deck.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
