Architectural · A-8QQ88

Roof Support Hanger Assembly with Aluminum Channel

Materials

Steel Aluminum

Elements

Roofs Ceilings Reinforcing

Connections

Bolted Connection Rebar Splice / Development

About this detail

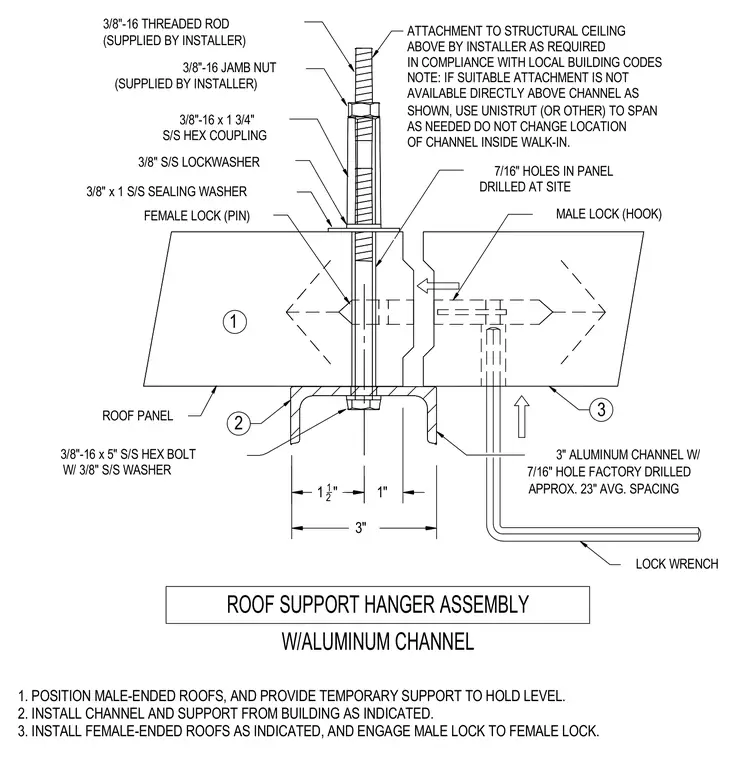

A roof support hanger assembly for a walk-in cooler or enclosure utilizes a 3-inch aluminum channel with 7/16-inch factory-drilled holes spaced approximately 23 inches on center. The assembly is suspended from the structural ceiling using a 3/8-inch-16 threaded rod secured with a 3/8-inch-16 jamb nut, a 3/8-inch stainless steel hex coupling, lockwasher, and a 3/8-inch by 1-inch stainless steel sealing washer. A 3/8-inch-16 by 5-inch stainless steel hex bolt with a 3/8-inch stainless steel washer fastens the roof panel to the aluminum channel through a 7/16-inch hole drilled at the site. The roof panels feature male lock hook and female lock pin connections engaged during installation. Installation notes require positioning male-ended roofs with temporary support, installing the channel and support from the building as indicated, and engaging the male and female locks.
