Architectural · A-8QHQD

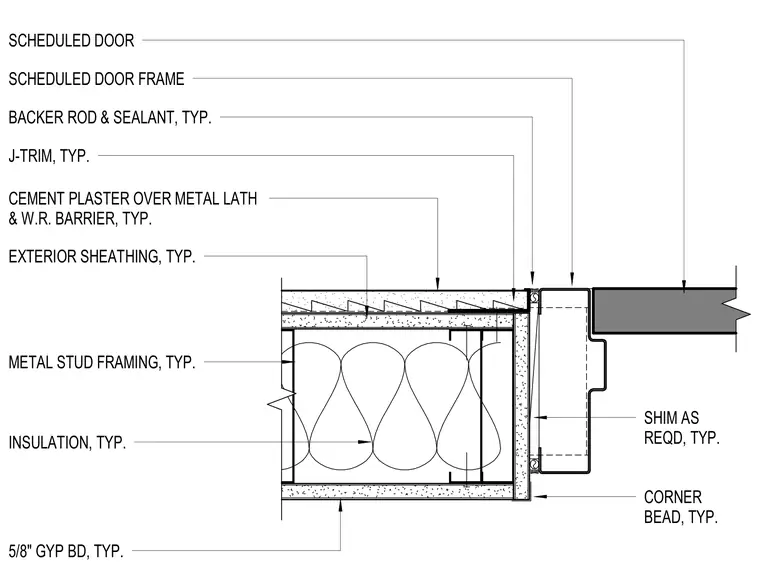

Stucco Door Jamb Detail at Metal Stud Wall

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

The wall assembly consists of cold-formed metal stud framing with internal insulation, covered by exterior sheathing and finished with cement plaster over metal lath and a water-resistant barrier. A scheduled door frame is set against the wall assembly with shims as required for proper alignment. The transition between the door frame and the stucco finish is detailed with a J-trim, corner bead, and a backer rod with sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
