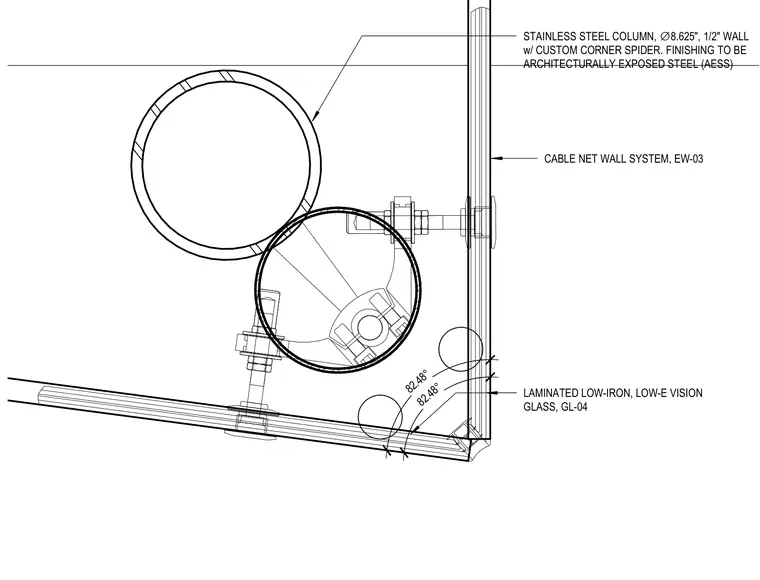

The corner assembly features an 8.625-inch diameter stainless steel column with a 1/2-inch wall thickness finished as architecturally exposed structural steel. A custom corner spider connects the structural column to the cable net wall system. Laminated low-iron low-E vision glass, designated GL-04, is integrated into the glazed facade system at an angle defined by 82.48-degree geometry.
82.48° 82.48° STAINLESS STEEL COLUMN, ∅ 8.625", 1/2" WALL w/ CUSTOM CORNER SPIDER. FINISHING TO BE ARCHITECTURALLY EXPOSED STEEL (AESS) LAMINATED LOW-IRON, LOW-E VISION GLASS, GL-04 CABLE NET WALL SYSTEM, EW-03
