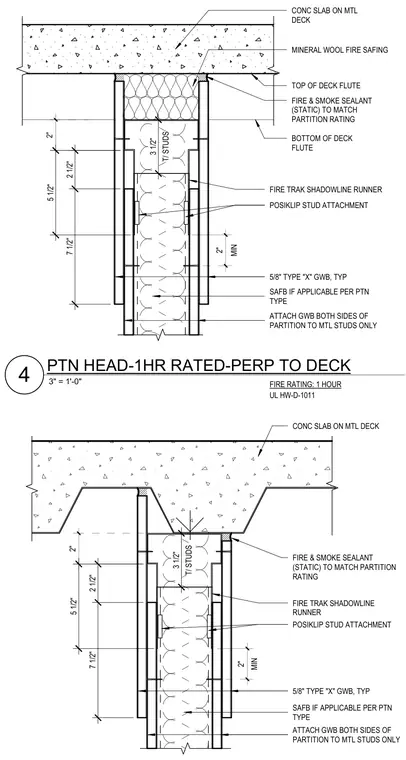

This one-hour fire-rated partition head detail connects metal stud walls to a concrete slab on metal deck. The assembly utilizes a Fire Trak shadowline runner with PosiKlip stud attachment and mineral wool fire safing insulation in the deck flutes. Fire and smoke sealant matches the partition rating at the perimeter joints. Gypsum wallboard consists of five-eighths inch Type X attached to metal studs only, with sound attenuation fire blanket insulation applied per partition type.
FIRE TRAK SHADOWLINE RUNNER POSIKLIP STUD ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE ATTACH GWB BOTH SIDES OF PARTITION TO MTL STUDS ONLY 5/8" TYPE "X" GWB, TYP 2" FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING CONC SLAB ON MTL DECK MIN 2" 2 1/2" 7 1/2" 5 1/2" T/ STUDS 3 1/2" UL HW-D-1011 FIRE RATING: 1 HOUR FIRE TRAK SHADOWLINE RUNNER POSIKLIP STUD ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE ATTACH GWB BOTH SIDES OF PARTITION TO MTL STUDS ONLY 5/8" TYPE "X" GWB, TYP 2" BOTTOM OF DECK FLUTE TOP OF DECK FLUTE CONC SLAB ON MTL DECK FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING MINERAL WOOL FIRE SAFING MIN 2" 2 1/2" 7 1/2" 5 1/2" T/ STUDS 3 1/2" 3" = 1'-0" 4 PTN HEAD-1HR RATED-PERP TO DECK
