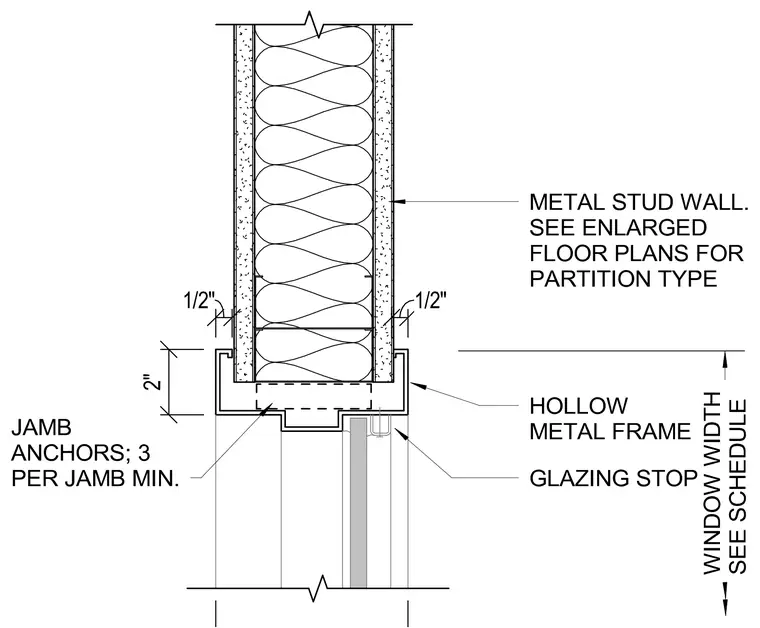

An interior window jamb detail shows a hollow metal frame wrapping the end of a metal stud wall with gypsum board on both sides. A minimum of three jamb anchors secure each jamb. The frame features a two-inch depth with half-inch clearances to the gypsum board finish. A glazing stop secures the glass pane within the assembly, with window width dimensions sized per the schedule.
