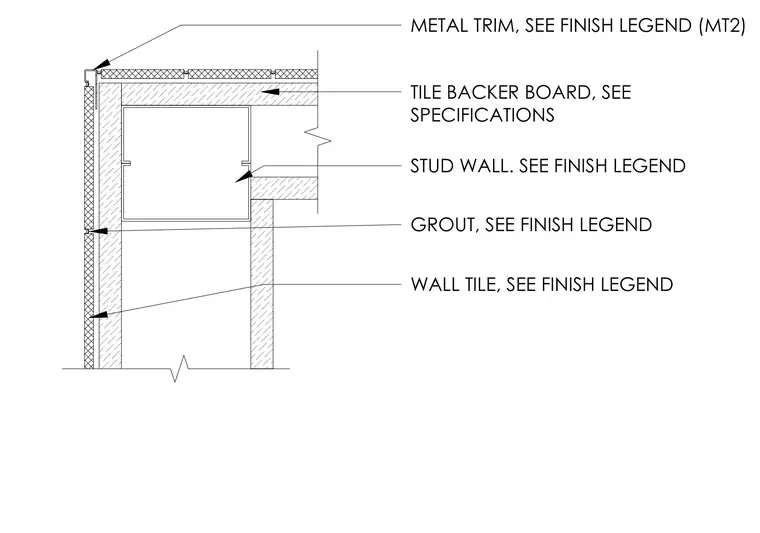

Wall tile is installed over a tile backer board attached to a stud wall with grout filling joints. A metal trim piece (MT2) finishes the outside corner at the wall transition.
WALL TILE, SEE FINISH LEGEND TILE BACKER BOARD, SEE SPECIFICATIONS GROUT, SEE FINISH LEGEND STUD WALL. SEE FINISH LEGEND METAL TRIM, SEE FINISH LEGEND (MT2)
