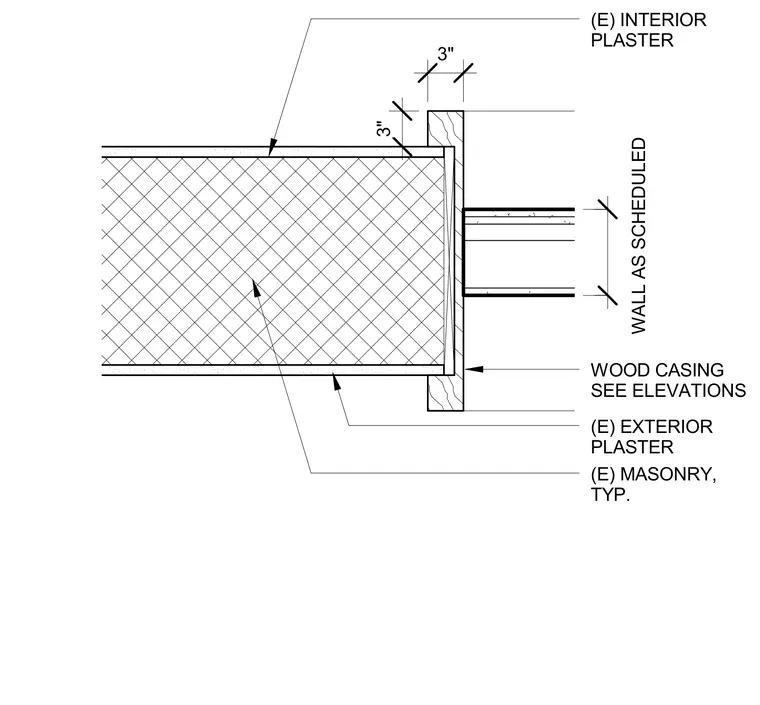

A new wall opening jamb condition cut into an existing masonry wall with typical interior and exterior plaster finishes. A wood casing trim piece is anchored at the jamb opening per the interior elevations. The wall assembly transitions into a three-inch vertical thickness at the jamb return.
3" WALL AS SCHEDULED 3" (E) INTERIOR PLASTER (E) EXTERIOR PLASTER WOOD CASING SEE ELEVATIONS (E) MASONRY, TYP.
