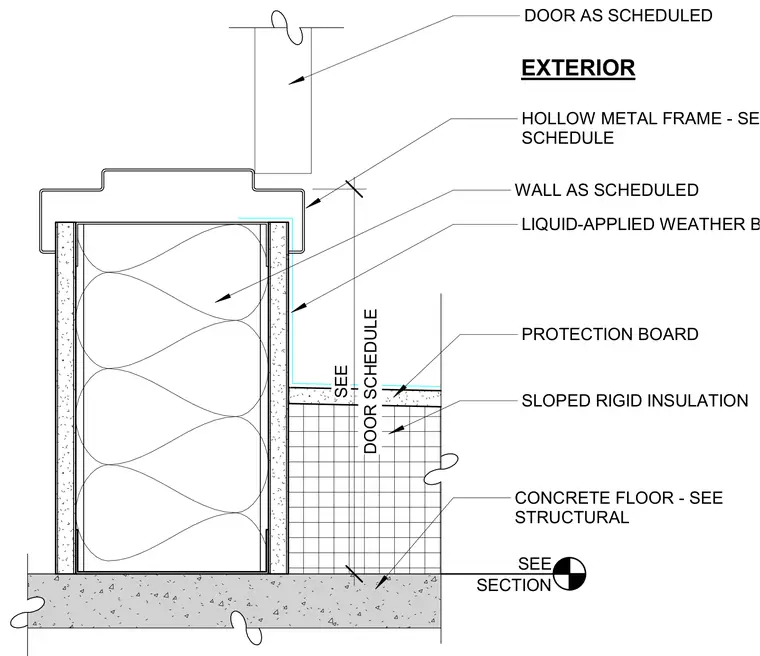

An exterior door frame sits above a concrete floor slab and wall assembly as specified on the architectural schedules. A hollow metal frame interfaces with the wall assembly, which is wrapped in a liquid-applied weather barrier and protection board. Sloped rigid insulation rests on the concrete floor slab adjacent to the wall base.
EXTERIOR DOOR AS SCHEDULED SLOPED RIGID INSULATION HOLLOW METAL FRAME - SEE DOOR SCHEDULE LIQUID-APPLIED WEATHER BARRIER PROTECTION BOARD DOOR SCHEDULE SEE SEE SECTION CONCRETE FLOOR - SEE STRUCTURAL WALL AS SCHEDULED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
