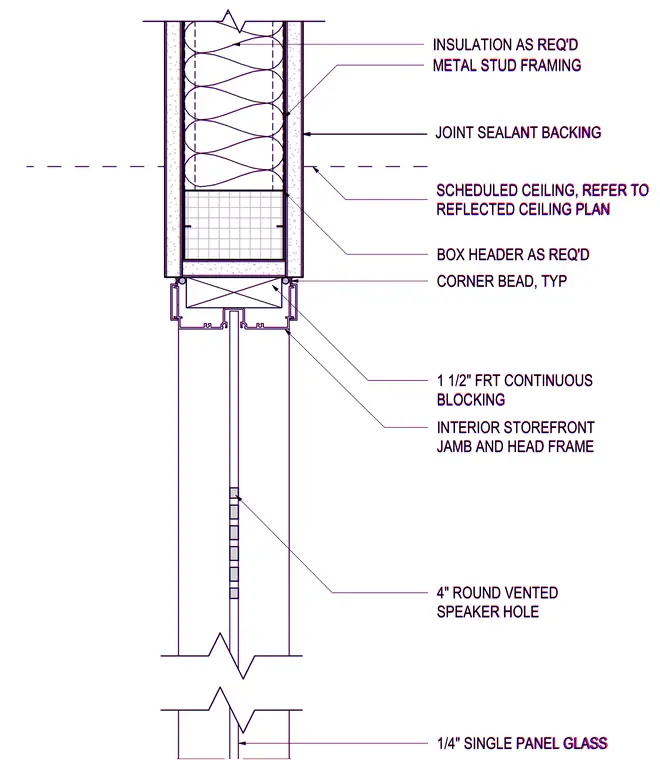

Metal stud framing with a box header as required and cavity insulation provides structural support for the interior fixed ticket window head and framing assembly. One and one-half inch fire-retardant treated continuous blocking supports the interior storefront jamb and head frame. Joint sealant backing seals the perimeter joint at the wall interface. A scheduled ceiling aligns with the reflected ceiling plan, finished with typical corner beads. A quarter-inch single panel glass featuring a four-inch round vented speaker hole makes up the glazing.
4" ROUND VENTED SPEAKER HOLE 1/4" SINGLE PANEL GLASS METAL STUD FRAMING INSULATION AS REQ'D BOX HEADER AS REQ'D JOINT SEALANT BACKING SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN 1 1/2" FRT CONTINUOUS BLOCKING CORNER BEAD, TYP INTERIOR STOREFRONT JAMB AND HEAD FRAME 4" ROUND VENTED SPEAKER HOLE 1/4" SINGLE PANEL GLASS METAL STUD FRAMING INSULATION AS REQ'D BOX HEADER AS REQ'D JOINT SEALANT BACKING SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN 1 1/2" FRT CONTINUOUS BLOCKING CORNER BEAD, TYP INTERIOR STOREFRONT JAMB AND HEAD FRAME
