Architectural · A-8PEVZ

Base Cabinet at Sink

Materials

Elements

Walls Doors Floors / Slabs Millwork / Casework

About this detail

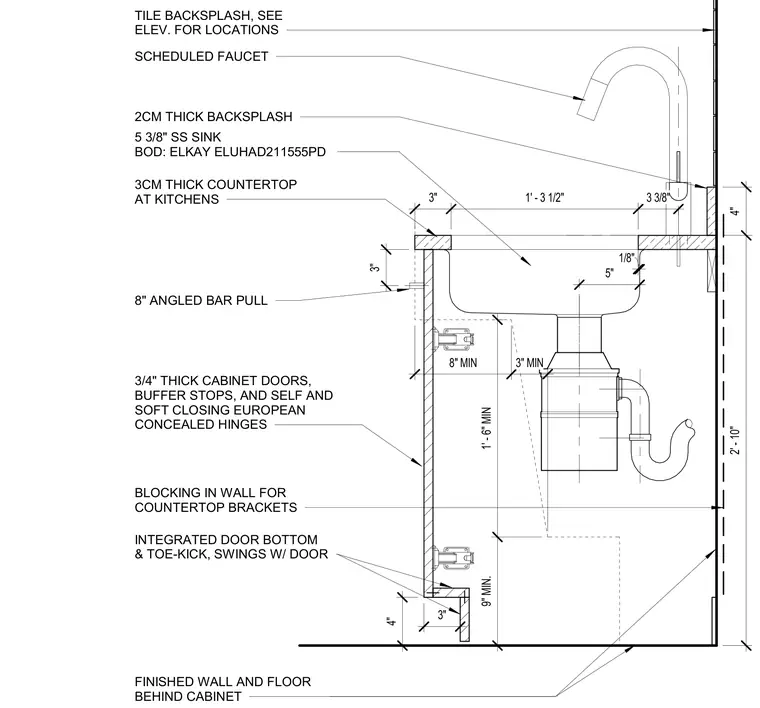

A kitchen sink base cabinet assembly is set against a finished wall and floor. The layout includes a three-centimeter thick kitchen countertop paired with a two-centimeter thick backsplash and a tile backsplash located per elevations. A stainless steel sink—specifically an Elkay model—drops into the countertop alongside a scheduled faucet. The cabinet features three-quarter-inch thick doors equipped with buffer stops, self- and soft-closing European concealed hinges, an eight-inch angled bar pull, and an integrated door bottom and toe-kick that swings with the door. In-wall blocking is provided for countertop brackets to support the assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
