Architectural · A-8PB68

Floor Identification Sign

Elements

About this detail

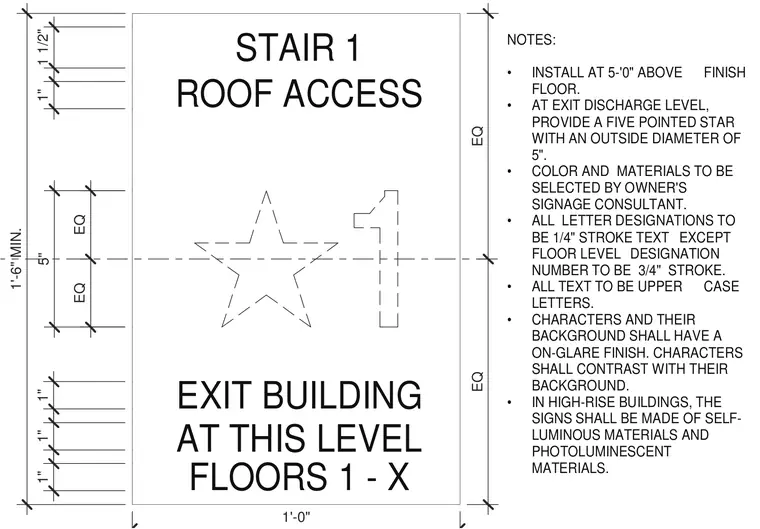

The floor identification sign is mounted at five feet above the finish floor and features upper-case lettering with non-glare, contrasting finishes. At the exit discharge level, a five-pointed star with a five-inch outside diameter is included alongside the stair and floor designations. Letter designations use one-quarter-inch stroke text, while the floor level designation number uses three-quarter-inch stroke text. In high-rise buildings, the signs are fabricated from self-luminous and photoluminescent materials. Colors and materials are selected by the owner's signage consultant.
