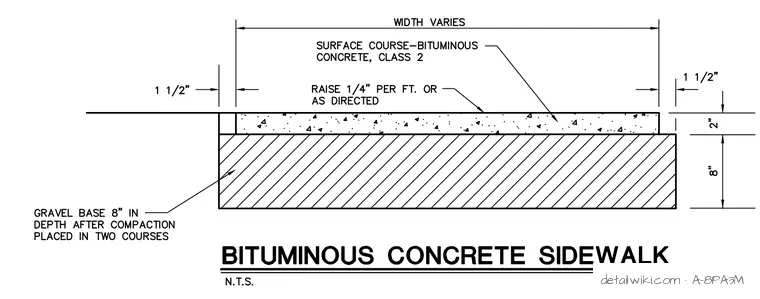

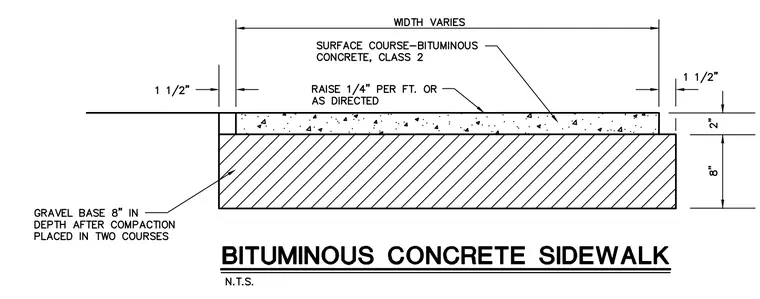

A bituminous concrete sidewalk assembly constructed over an eight-inch gravel base placed in two courses after compaction. The surface course consists of Class 2 bituminous concrete with a thickness of two inches and a variable width. The pavement slopes upward at a rate of one-quarter inch per foot or as directed. Dimensional callouts indicate a one-and-one-half-inch offset at the edge.
