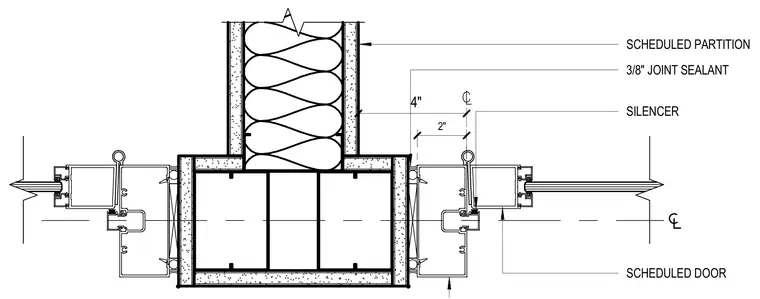

An aluminum storefront door jamb with a hinge connects to a scheduled partition with a silencer and joint sealant. A three-eighths inch joint sealant closes the gap between the aluminum frame and the wall assembly. The door frame aligns with the partition intersection according to the scheduled dimensions.
