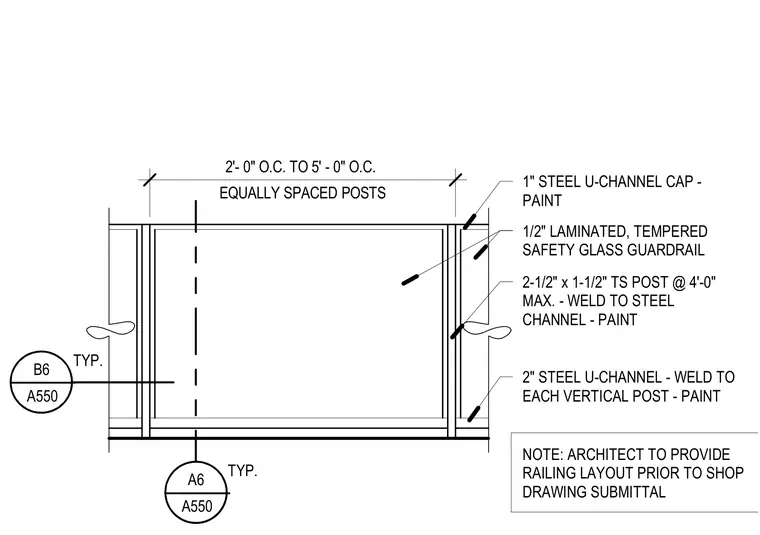

This glass guardrail assembly utilizes a one-half-inch thick laminated, tempered safety glass panel fitted between vertical two-and-a-half by one-and-a-half-inch structural steel tube posts spaced at a maximum of four feet on center. The vertical posts weld to a continuous two-inch steel U-channel at the base. A one-inch steel U-channel cap finishes the top of the assembly and welds to each vertical post. All exposed steel components receive a painted finish. Post spacing varies from two feet to five feet on center based on site conditions.
EQUALLY SPACED POSTS 2'- 0" O.C. TO 5' - 0" O.C. A6 A550 TYP. ____ 1/2" LAMINATED, TEMPERED SAFETY GLASS GUARDRAIL 2-1/2" x 1-1/2" TS POST @ 4'-0" MAX. - WELD TO STEEL CHANNEL - PAINT 2" STEEL U-CHANNEL - WELD TO EACH VERTICAL POST - PAINT 1" STEEL U-CHANNEL CAP - PAINT B6 A550 TYP. ____ NOTE: ARCHITECT TO PROVIDE RAILING LAYOUT PRIOR TO SHOP DRAWING SUBMITTAL
