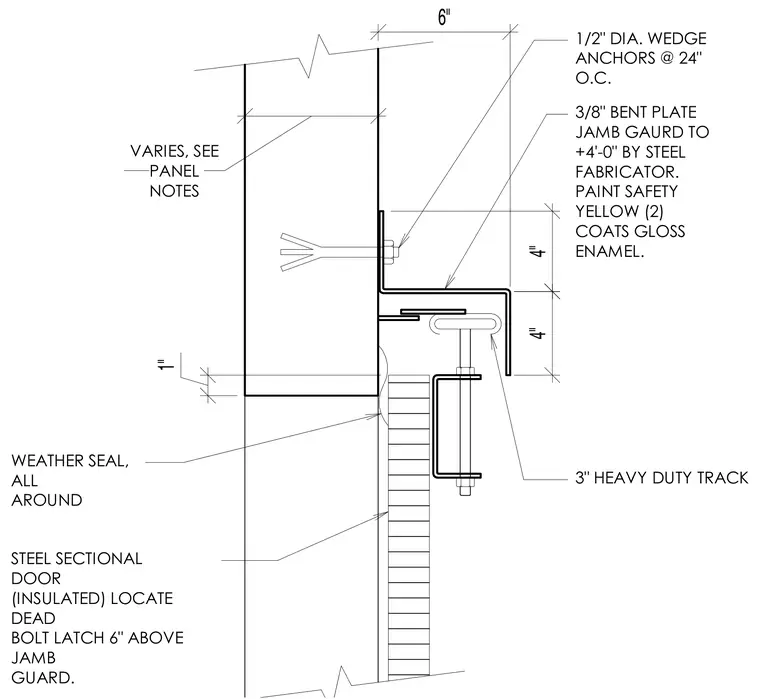

A three-eighths-inch bent plate jamb guard extends to plus four feet zero inches and is anchored to the wall with half-inch diameter wedge anchors spaced at twenty-four inches on center. The guard is finished with two coats of safety yellow gloss enamel paint. A three-inch heavy-duty steel track supports the insulated steel sectional door, with a dead bolt latch positioned six inches above the jamb guard. Continuous weather sealing is provided all around the perimeter.
VARIES, SEE PANEL NOTES 1" 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND
