Control joints in concrete pavement are constructed with either a one-inch typical saw cut joint or a tooled joint alternative. Both joint types extend one inch deep into the concrete slab above aggregate base course and compacted subgrade. Spacing for the control joints is coordinated per the project plans.

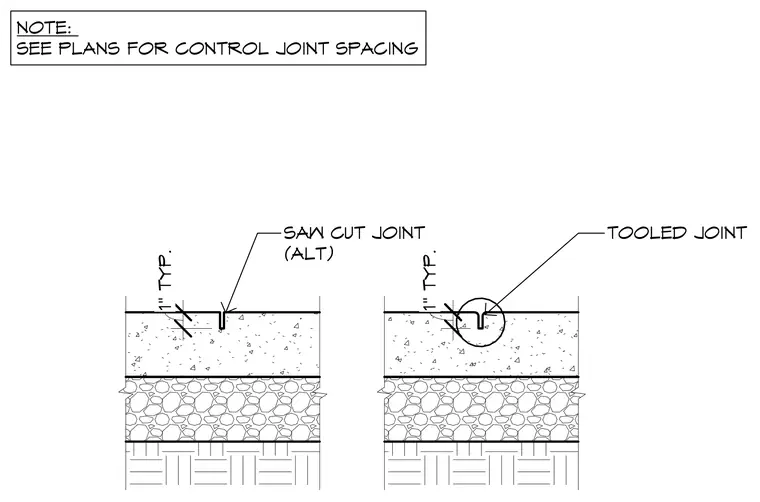

1" TYP. SAW CUT JOINT (ALT) TOOLED JOINT NOTE: SEE PLANS FOR CONTROL JOINT SPACING 1" TYP.
