Architectural · A-8NW5V

Projecting Parapet Cornice with Brick Veneer and Aluminum Cap

Materials

Concrete Brick Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

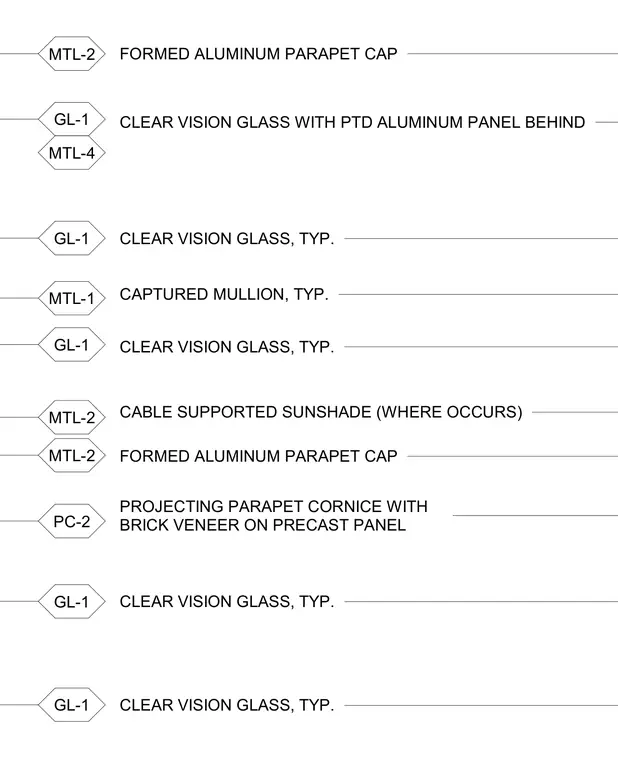

A precast concrete panel with brick veneer forms the projecting parapet cornice, topped with a formed aluminum parapet cap. Clear vision glass is paired with painted aluminum panels behind, secured by typical captured mullions. A cable-supported sunshade is integrated where specified.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
