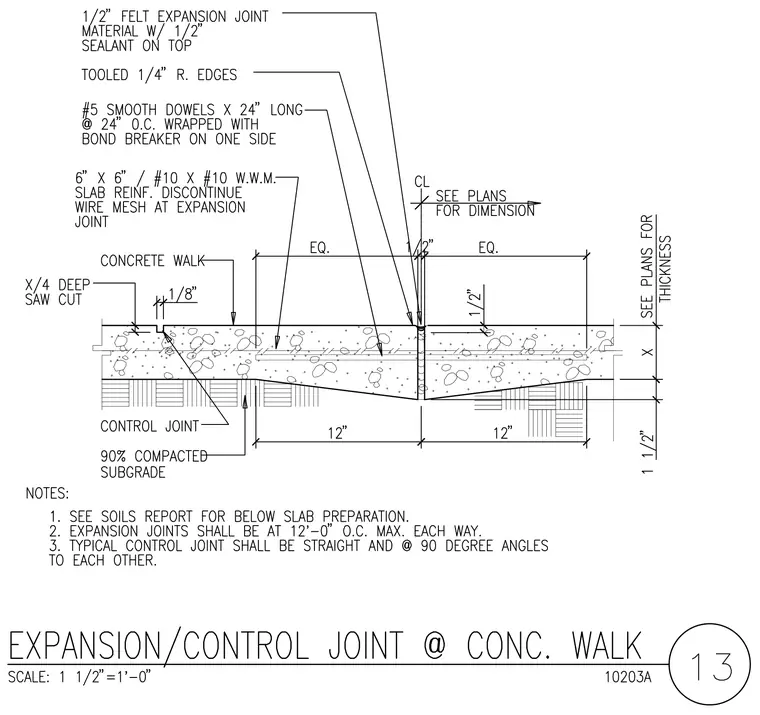

This concrete walk assembly details an expansion joint formed with a one-half-inch felt expansion joint material and a one-half-inch sealant on top, finished with tooled one-quarter-inch radius edges. Number five smooth dowels measuring twenty-four inches long are placed at twenty-four inches on center, wrapped with a bond breaker on one side. The six-by-six number ten by number ten welded wire mesh slab reinforcement is discontinued at the expansion joint. A control joint with an X-over-four-deep saw cut and tooled one-eighth-inch edges is shown in the concrete walk over a ninety percent compacted subgrade.
