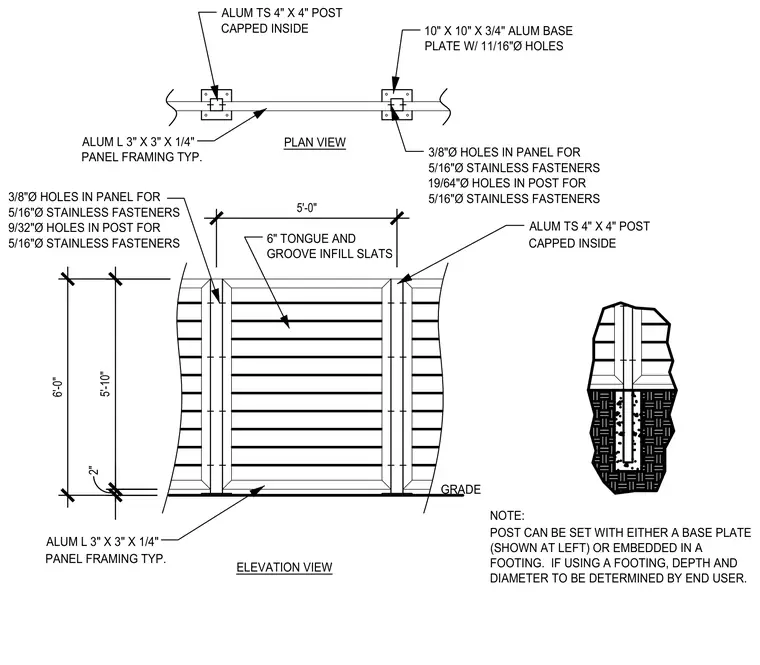

An architectural aluminum panel and post assembly features 4x4 aluminum structural tube posts connected to 3x3x1/4-inch aluminum angle panel framing. The infill consists of 6-inch tongue and groove slats secured with five-sixteenth-inch stainless steel fasteners through pre-drilled holes in the framing and posts. The posts are capped inside and can be supported by a 10x10x3/4-inch aluminum base plate with eleven-sixteenth-inch diameter holes or embedded directly into a concrete footing with depth and diameter determined by the end user.
PLAN VIEW GRADE 5'-10" 2" 6'-0" ELEVATION VIEW 3/8"Ø HOLES IN PANEL FOR 5/16"Ø STAINLESS FASTENERS 19/64"Ø HOLES IN POST FOR 5/16"Ø STAINLESS FASTENERS ALUM L 3" X 3" X 1/4" PANEL FRAMING TYP. ALUM TS 4" X 4" POST CAPPED INSIDE 10" X 10" X 3/4" ALUM BASE PLATE W/ 11/16"Ø HOLES 3/8"Ø HOLES IN PANEL FOR 5/16"Ø STAINLESS FASTENERS 9/32"Ø HOLES IN POST FOR 5/16"Ø STAINLESS FASTENERS ALUM TS 4" X 4" POST CAPPED INSIDE NOTE: POST CAN BE SET WITH EITHER A BASE PLATE (SHOWN AT LEFT) OR EMBEDDED IN A FOOTING. IF USING A FOOTING, DEPTH AND DIAMETER TO BE DETERMINED BY END USER. ALUM L 3" X 3" X 1/4" PANEL FRAMING TYP. 5'-0" 6" TONGUE AND GROOVE INFILL SLATS
