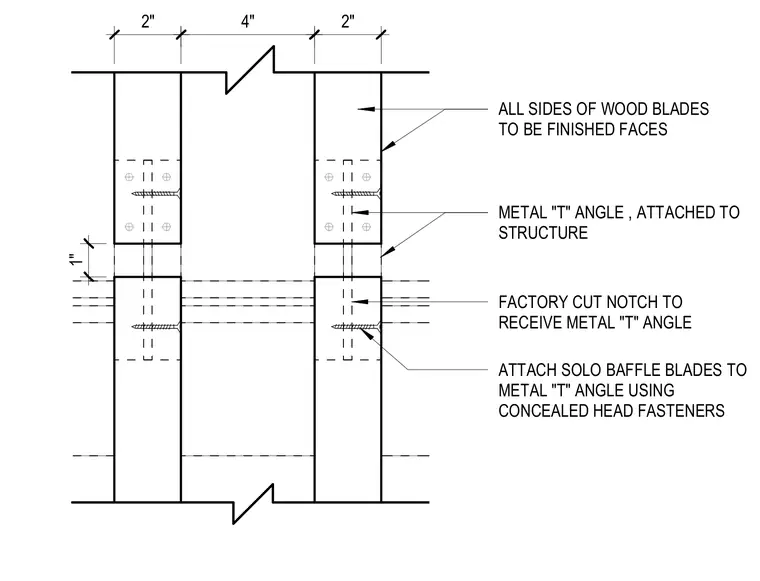

Solo wood baffle blades feature a factory-cut notch to receive a metal tee angle attached to the overhead structure. All sides of the wood blades are finished faces. The baffle blades are secured to the metal tee angle using concealed head fasteners.
4" 2" 2" 1" ATTACH SOLO BAFFLE BLADES TO METAL "T" ANGLE USING CONCEALED HEAD FASTENERS FACTORY CUT NOTCH TO RECEIVE METAL "T" ANGLE METAL "T" ANGLE , ATTACHED TO STRUCTURE ALL SIDES OF WOOD BLADES TO BE FINISHED FACES
