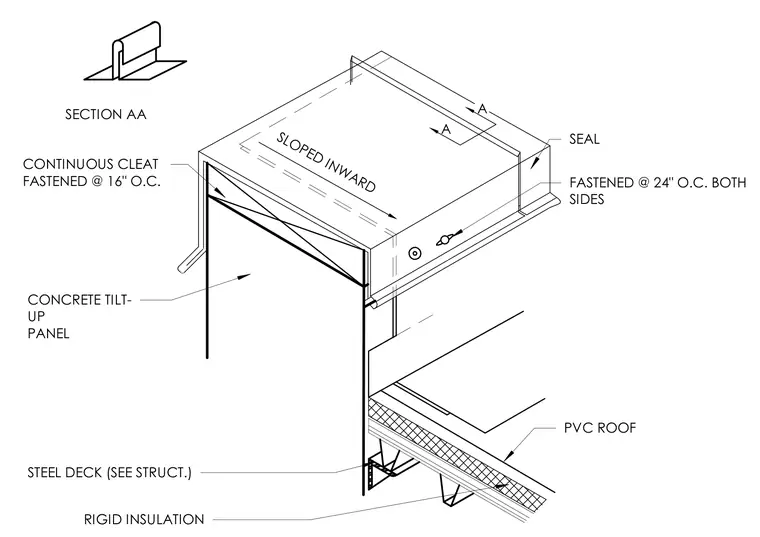

A roof coping assembly ties into a concrete tilt-up panel and steel deck. A continuous cleat is fastened at sixteen inches on center along the parapet wall to secure the sloped coping cover. The PVC roof membrane is sealed and fastened at twenty-four inches on center on both sides. Rigid insulation is installed beneath the roof deck, with the steel deck detailed per structural drawings.
SEAL PVC ROOF FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
