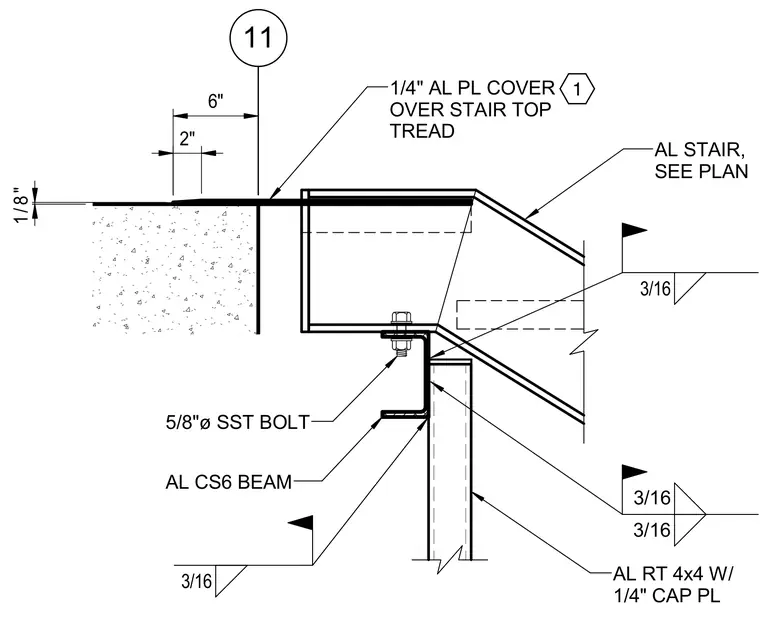

An aluminum stair top landing is detailed with a quarter-inch aluminum plate cover extending over the stair top tread. The stair framing connects to an aluminum 4x4 rectangular tube with a quarter-inch cap plate, supported by an aluminum CS6 channel beam. Five-eighths inch diameter stainless steel bolts fasten the assembly, supplemented by three-sixteenths inch fillet welds.
11 AL STAIR, SEE PLAN 3/16 3/16 AL RT 4x4 W/ 1/4" CAP PL 5/8"ø SST BOLT AL CS6 BEAM 3/16 3/16 1/4" AL PL COVER OVER STAIR TOP TREAD 1/8" 1 2" 6"
