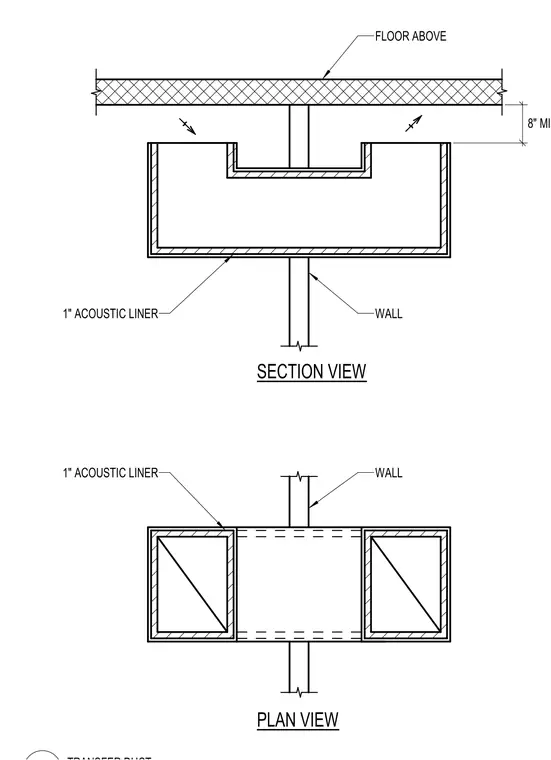

The drawing illustrates both a section view and a plan view of a duct penetration and wall intersection detail. A wall connects to the underside of the floor above and interfaces with a duct lined with a 1 inch acoustic liner. The detail includes dimensions and clear callouts for the floor above, wall, acoustic liner, and ductwork configuration.
8" MIN FLOOR ABOVE WALL 1" ACOUSTIC LINER WALL 1" ACOUSTIC LINER PLAN VIEW SECTION VIEW
