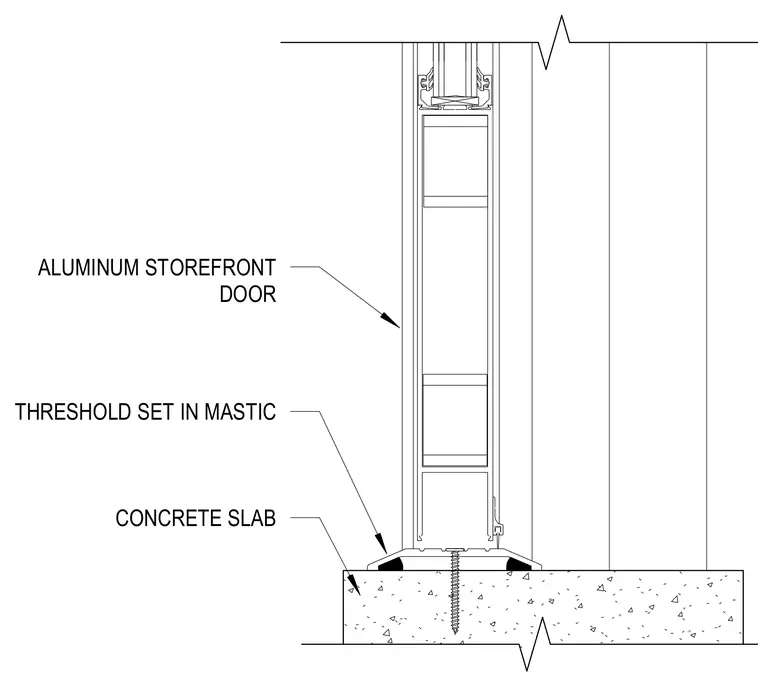

An aluminum storefront door frame rests directly upon a concrete slab. The aluminum threshold is bedded in mastic and anchored into the concrete substrate with a countersunk fastener. Neoprene or rubber gaskets seal the base of the frame against moisture and air infiltration.
