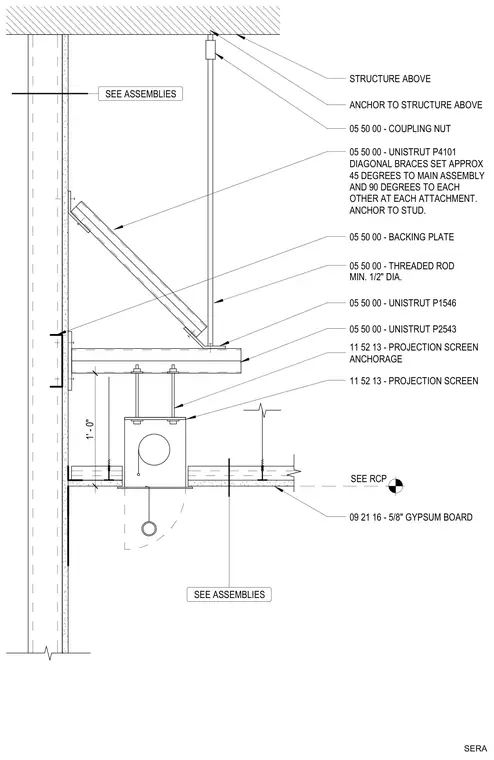

The projection screen housing is supported by a Unistrut P2543 channel suspended from the structure above by minimum 1/2-inch diameter threaded rods with coupling nuts. Diagonal braces using Unistrut P4101 are set at approximately 45 degrees to the main assembly and 90 degrees to each other at each attachment, anchored back to the metal stud framing. Additional backing plates and Unistrut P1546 fittings secure the assembly. The entire installation is integrated into a ceiling finished with 5/8-inch gypsum board.
ANCHOR TO STRUCTURE ABOVE DIAGONAL BRACES SET APPROX 45 DEGREES TO MAIN ASSEMBLY AND 90 DEGREES TO EACH OTHER AT EACH ATTACHMENT. ANCHOR TO STUD. MIN. 1/2" DIA. STRUCTURE ABOVE SEE ASSEMBLIES 1' - 0" SEE ASSEMBLIES SEE RCP 05 50 00 - COUPLING NUT 05 50 00 - UNISTRUT P4101 05 50 00 - BACKING PLATE 05 50 00 - THREADED ROD 05 50 00 - UNISTRUT P1546 05 50 00 - UNISTRUT P2543 11 52 13 - PROJECTION SCREEN ANCHORAGE 11 52 13 - PROJECTION SCREEN SERA 09 21 16 - 5/8" GYPSUM BOARD
