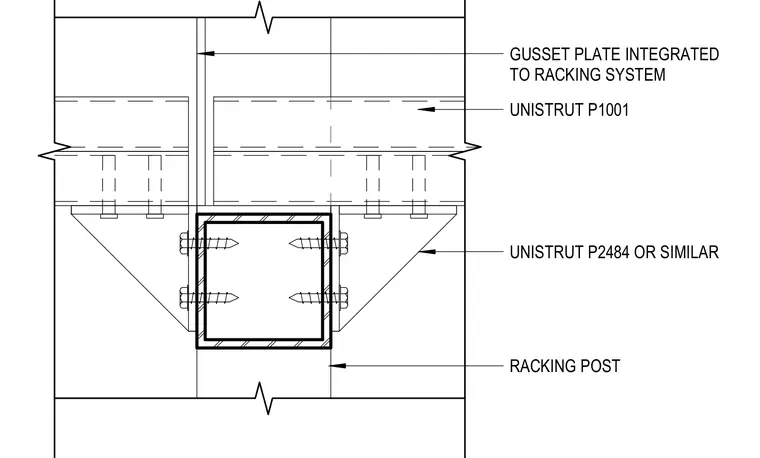

A structural racking post connects to an overhead Unistrut P1001 channel assembly utilizing a Unistrut P2484 or similar gusset plate. The gusset plates secure against the tubular post on multiple sides with through-bolts. The upper portion of the connection integrates directly into the overhead Unistrut channel framing system.
RACKING POST UNISTRUT P1001 GUSSET PLATE INTEGRATED TO RACKING SYSTEM UNISTRUT P2484 OR SIMILAR
