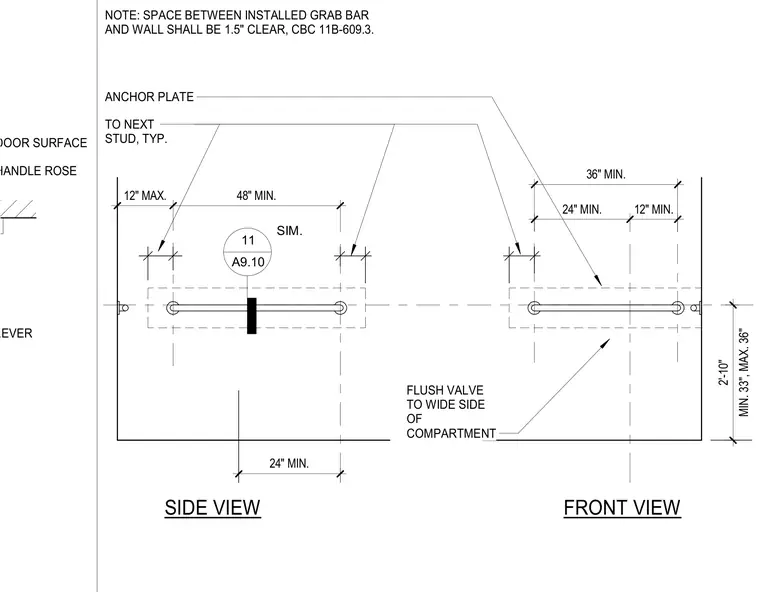

An accessible grab bar installation features anchor plates secured to adjacent wall studs with a required 1.5 inch clear space between the bar and the finished wall per CBC 11B-609.3. The horizontal bar is positioned at a height ranging from 33 inches minimum to 36 inches maximum above the finished floor. Side and front elevation views indicate specific dimensional constraints including a 12 inch maximum and 48 inch minimum span layout.
ANCHOR PLATE TO NEXT STUD, TYP. MIN. 33", MAX. 36" 2'-10" FRONT VIEW SIDE VIEW 24" MIN. NOTE: SPACE BETWEEN INSTALLED GRAB BAR AND WALL SHALL BE 1.5" CLEAR, CBC 11B-609.3. 12" MAX. 48" MIN. 24" MIN. 12" MIN. 36" MIN. FLUSH VALVE TO WIDE SIDE OF COMPARTMENT 11 A9.10 SIM. LEVER HANDLE ROSE DOOR SURFACE
