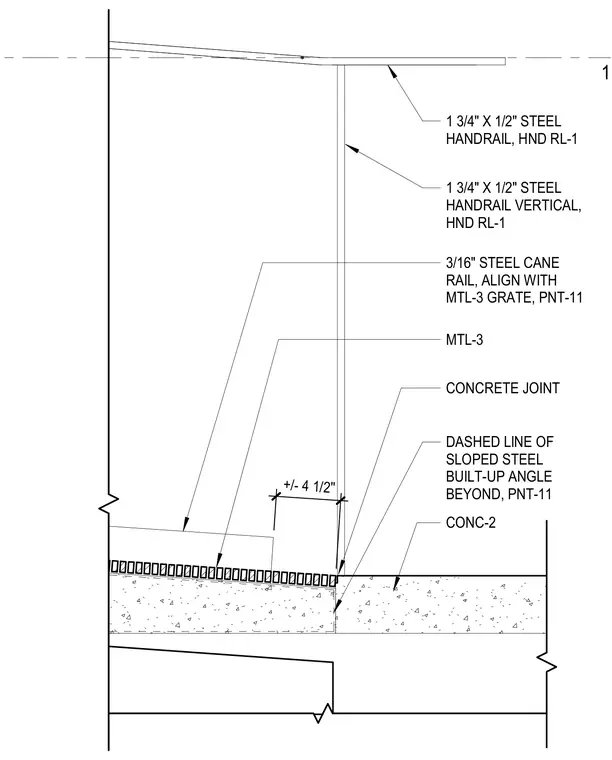

A 1 3/4 inch by 1/2 inch steel handrail designated as HND RL-1 is supported by vertical steel handrail members of the same profile. A 3/16 inch steel cane rail aligns with the MTL-3 metal grate and is finished with PNT-11 paint. The concrete ramp incorporates a concrete joint labeled CONC-2 with a +/- 4 1/2 inch dimension. A dashed line indicates a sloped steel built-up angle beyond.
102' - 0" 1 3/4" X 1/2" STEEL HANDRAIL, HND RL-1 1 3/4" X 1/2" STEEL HANDRAIL VERTICAL, HND RL-1 3/16" STEEL CANE RAIL, ALIGN WITH MTL-3 GRATE, PNT-11 MTL-3 DASHED LINE OF SLOPED STEEL BUILT-UP ANGLE BEYOND, PNT-11 + / - 4 1 / 2 " CONC-2 CONCRETE JOINT
