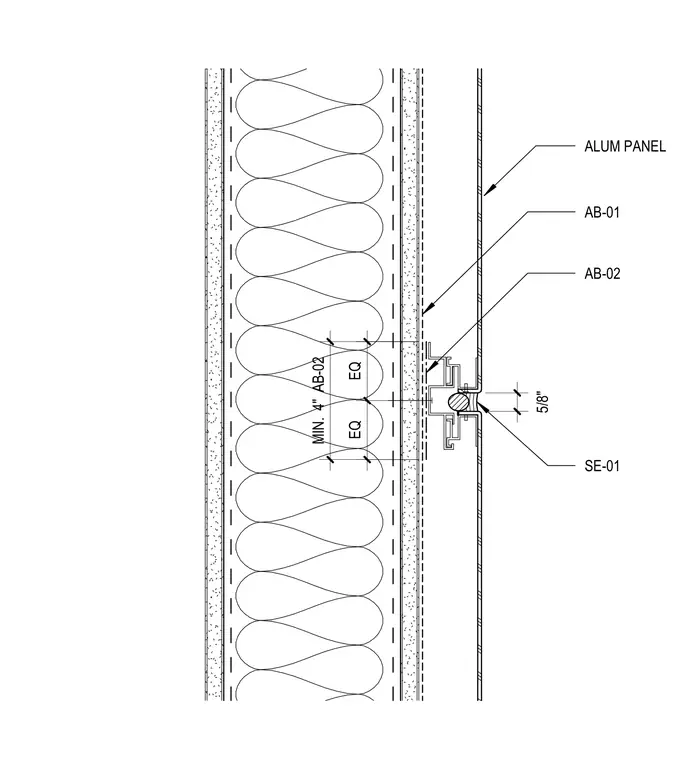

Aluminum panels attach to vertical subframing members supported over continuous insulation and sheathing layers. A vertical joint width of five-eighths inch incorporates sealant and backing details between adjacent panel edges. Subframing components maintain symmetrical spacing with minimum four-inch dimensional clearances. Fasteners secure the assembly components through the insulation support plane.
EQ EQ MIN. 4" AB-02 5/8" AB-01 AB-02 ALUM PANEL SE-01
