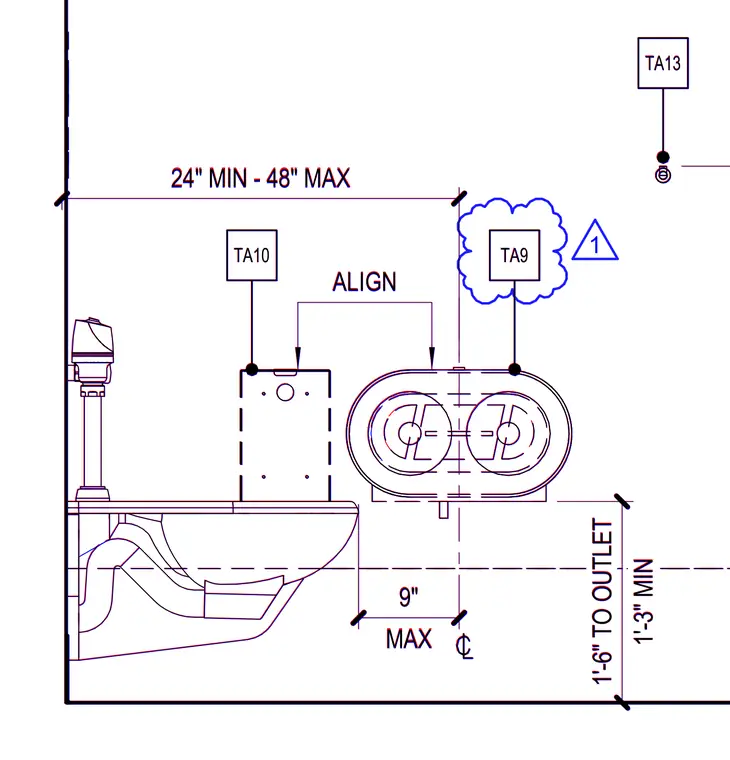

A wall-hung water closet is shown adjacent to a double-roll toilet paper dispenser with detailed mounting heights and centerline clearances. The dispenser is positioned with a maximum nine-inch distance to the centerline and aligned with the accessory above it. Vertical dimensions specify a height of one foot three inches minimum to one foot six inches minimum to the outlet, with a top mounting range of twenty-four inches minimum to forty-eight inches maximum.
TA10 ALIGN TA13 MAX 9" TA9 1'-3" MIN 1'-6" TO OUTLET 24" MIN - 48" MAX TA10 ALIGN TA13 MAX 9" TA9 1'-3" MIN 1'-6" TO OUTLET 24" MIN - 48" MAX 1
