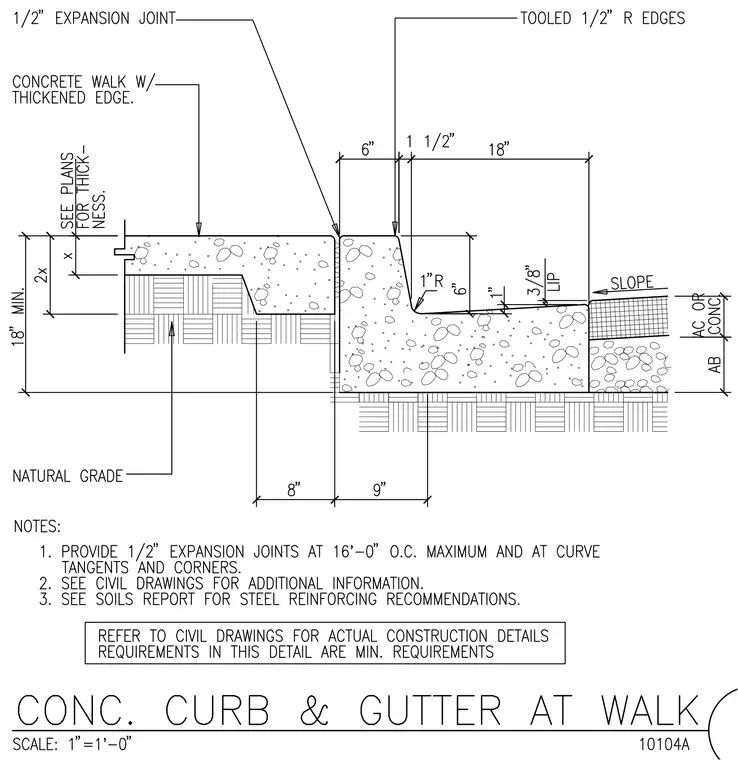

A concrete walk with a thickened edge sits adjacent to a concrete curb and gutter assembly, separated by a half-inch expansion joint. The curb features a six-inch vertical face, a one-inch radius at the base, and an eighteen-inch gutter pan with a three-eighths-inch lip sloping toward the flow line. The assembly rests on aggregate base and natural grade, with a compacted subbase beneath the curb and gutter. Tooled one-inch and half-inch radii finish the concrete edges at the transition points. Expansion joints are specified at sixteen feet on center maximum and at curve tangents and corners.
