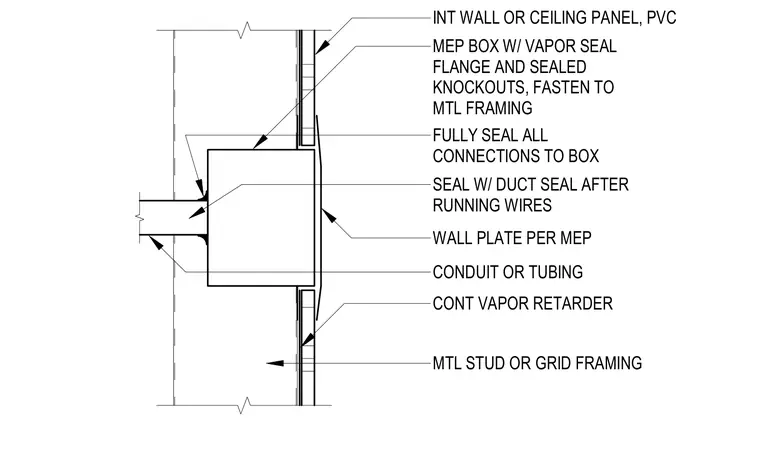

A PVC mechanical, electrical, and plumbing box featuring a vapor seal flange and sealed knockouts is fastened to metal stud or grid framing behind interior wall or ceiling panels. Conduit or tubing enters the box and all connections are fully sealed. A continuous vapor retarder integrates with the box flange, and duct seal is applied after running wires, finished with a wall plate.
INT WALL OR CEILING PANEL, PVC MEP BOX W/ VAPOR SEAL FLANGE AND SEALED KNOCKOUTS, FASTEN TO MTL FRAMING WALL PLATE PER MEP CONT VAPOR RETARDER MTL STUD OR GRID FRAMING FULLY SEAL ALL CONNECTIONS TO BOX CONDUIT OR TUBING SEAL W/ DUCT SEAL AFTER RUNNING WIRES
