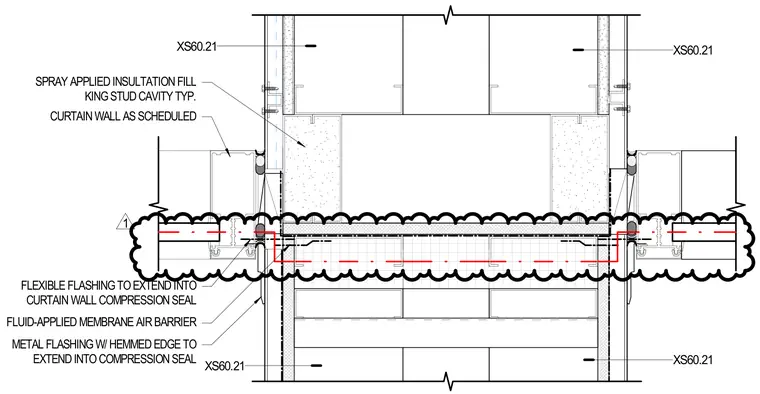

A plan detail of the jamb transition between a scheduled curtain wall and a metal stud backup wall. The king stud cavity is filled with spray-applied insulation, and a fluid-applied membrane air barrier covers the exterior framing. Flexible flashing and metal flashing with a hemmed edge extend directly into the curtain wall compression seal to maintain weather resistance.
CURTAIN WALL AS SCHEDULED SPRAY APPLIED INSULTATION FILL KING STUD CAVITY TYP. FLEXIBLE FLASHING TO EXTEND INTO CURTAIN WALL COMPRESSION SEAL FLUID-APPLIED MEMBRANE AIR BARRIER METAL FLASHING W/ HEMMED EDGE TO EXTEND INTO COMPRESSION SEAL XS60.21 XS60.21 XS60.21 XS60.21 1
