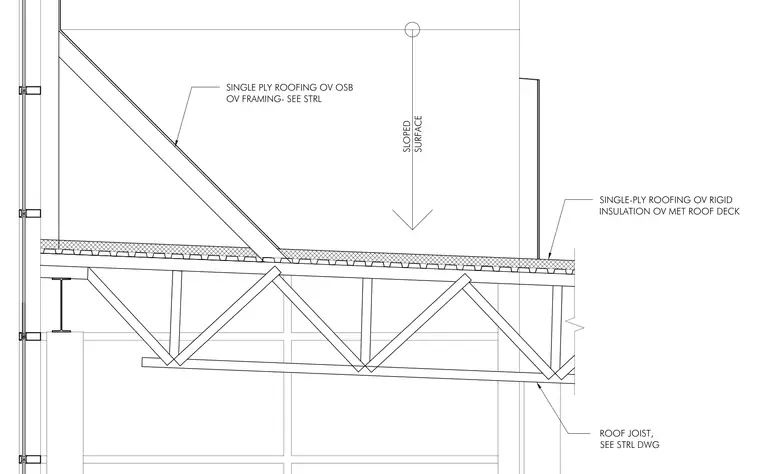

Single-ply roofing is installed over rigid insulation and a metal roof deck supported by a structural roof joist. An adjacent sloped surface consists of single-ply roofing over oriented strand board sheathing on wood framing detailed per structural drawings.
ROOF JOIST, SEE STRL DWG SINGLE-PLY ROOFING OV RIGID INSULATION OV MET ROOF DECK SINGLE PLY ROOFING OV OSB OV FRAMING- SEE STRL SLOPED SURFACE
