Architectural · A-8HQ52

Front Desk Island Wood Endgrain Countertop Section

Materials

Elements

About this detail

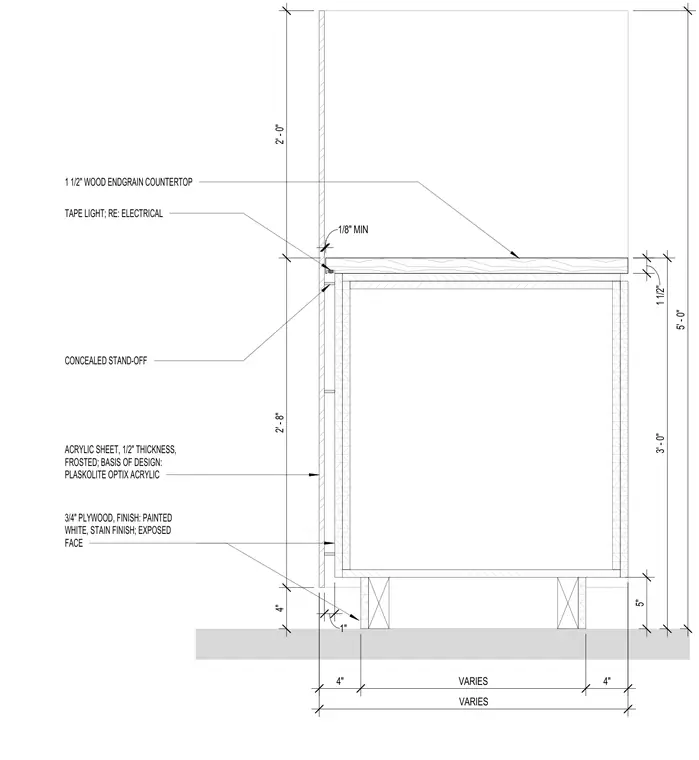

The front desk island assembly consists of a three-quarter inch plywood casework finished with paint or stain and mounted on a wood base frame. A one and a half inch thick wood endgrain countertop spans the casework and incorporates a concealed stand-off supporting a tape light below an eighth inch minimum reveal. A half inch thick frosted acrylic sheet, specified as Plaskolite Optix, clads the exterior face of the island and is mounted with stand-offs. Vertical and horizontal dimensions establish the overall five foot height, three foot work surface height, and various base clearances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
