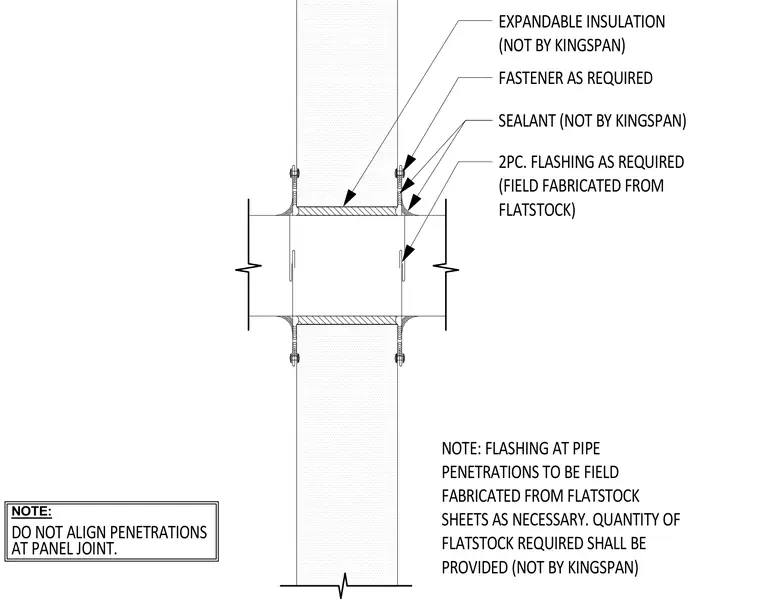

A pipe penetrates through the insulated parapet wall assembly, offset from any panel joints. Expandable insulation fills the annular space around the penetration. Two-piece flashing, field-fabricated from flatstock sheets, is secured to the wall surfaces with fasteners and sealed with exterior sealant.
FASTENER AS REQUIRED SEALANT (NOT BY KINGSPAN) 2PC. FLASHING AS REQUIRED (FIELD FABRICATED FROM FLATSTOCK) NOTE: FLASHING AT PIPE PENETRATIONS TO BE FIELD FABRICATED FROM FLATSTOCK SHEETS AS NECESSARY. QUANTITY OF FLATSTOCK REQUIRED SHALL BE PROVIDED (NOT BY KINGSPAN) NOTE: DO NOT ALIGN PENETRATIONS AT PANEL JOINT. EXPANDABLE INSULATION (NOT BY KINGSPAN)
