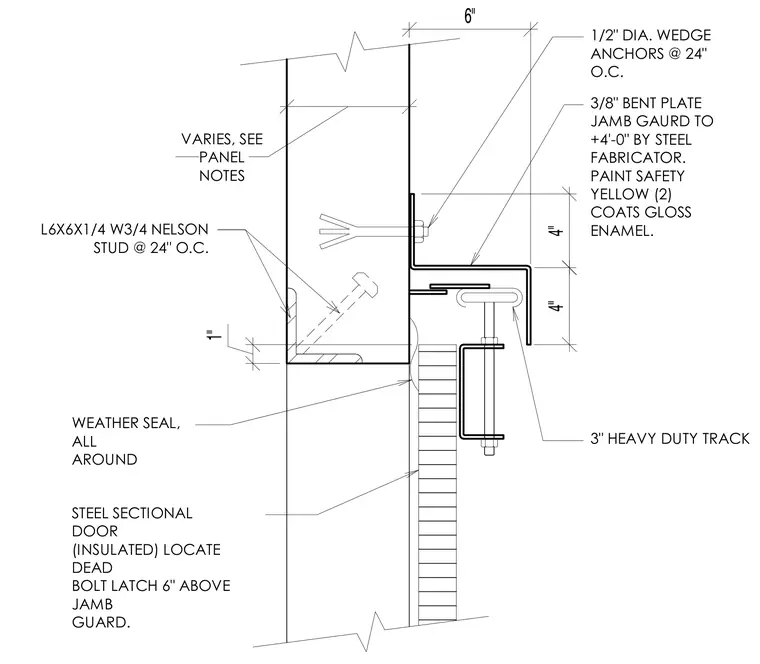

The jamb condition for an insulated steel sectional door is anchored to a structural wall. A 3/8-inch bent plate jamb guard extends to plus 4'-0" and is secured with 1/2-inch diameter wedge anchors spaced at 24 inches on center. The jamb guard is finished with two coats of safety yellow gloss enamel. An L6x6x1/4 angle with 3/4-inch Nelson studs at 24 inches on center anchors the track assembly. A weather seal is provided all around, and the door's dead bolt latch is positioned 6 inches above the jamb guard.
VARIES, SEE PANEL NOTES 1" 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND L6X6X1/4 W3/4 NELSON STUD @ 24" O.C.
