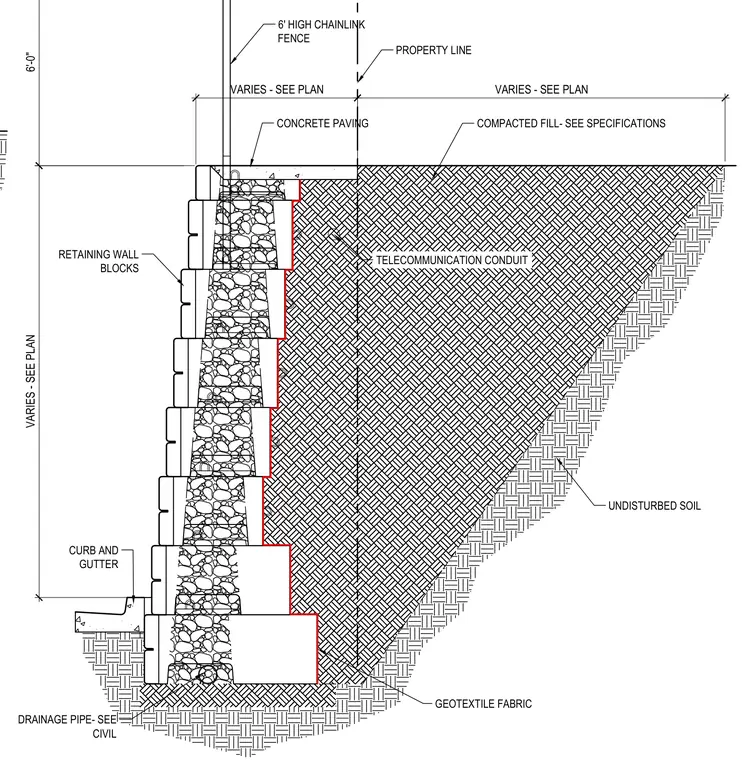

A segmental retaining wall is constructed from concrete blocks backed by compacted fill and undisturbed soil with a geotextile fabric separator. A concrete paving slab with an integrated curb and gutter sits atop the retained earth alongside a property line fence. A telecommunication conduit is routed through the compacted fill behind the upper wall blocks. A drainage pipe is positioned at the base of the wall per civil engineering requirements.
PROPERTY LINE CONCRETE PAVING 6' HIGH CHAINLINK FENCE CURB AND GUTTER DRAINAGE PIPE- SEE CIVIL RETAINING WALL BLOCKS UNDISTURBED SOIL COMPACTED FILL- SEE SPECIFICATIONS VARIES - SEE PLAN VARIES - SEE PLAN VARIES - SEE PLAN 6'-0" TELECOMMUNICATION CONDUIT GEOTEXTILE FABRIC
