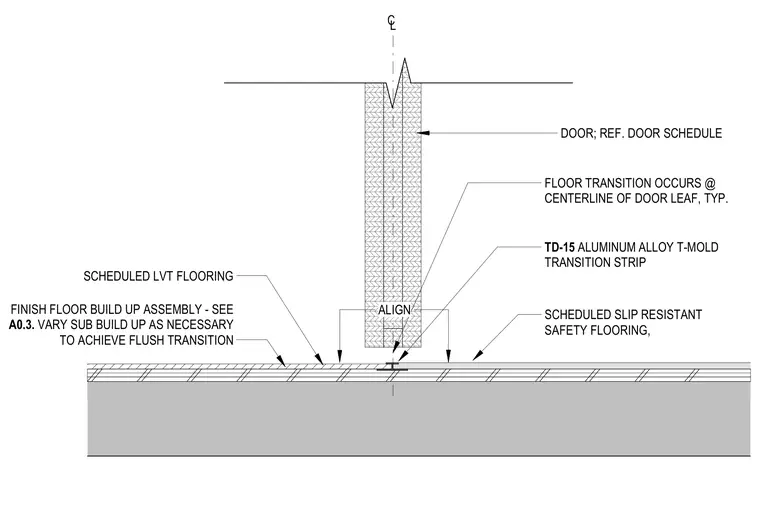

An aluminum alloy T-mold transition strip joins scheduled luxury vinyl tile flooring to scheduled slip-resistant safety flooring at a door threshold. The floor transition occurs at the centerline of the door leaf. Sub-floor build-up varies as necessary to achieve a flush transition aligned with the transition strip.
DOOR; REF. DOOR SCHEDULE SCHEDULED SLIP RESISTANT SAFETY FLOORING, FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L SCHEDULED LVT FLOORING FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION ALIGN TD-15 ALUMINUM ALLOY T-MOLD TRANSITION STRIP
