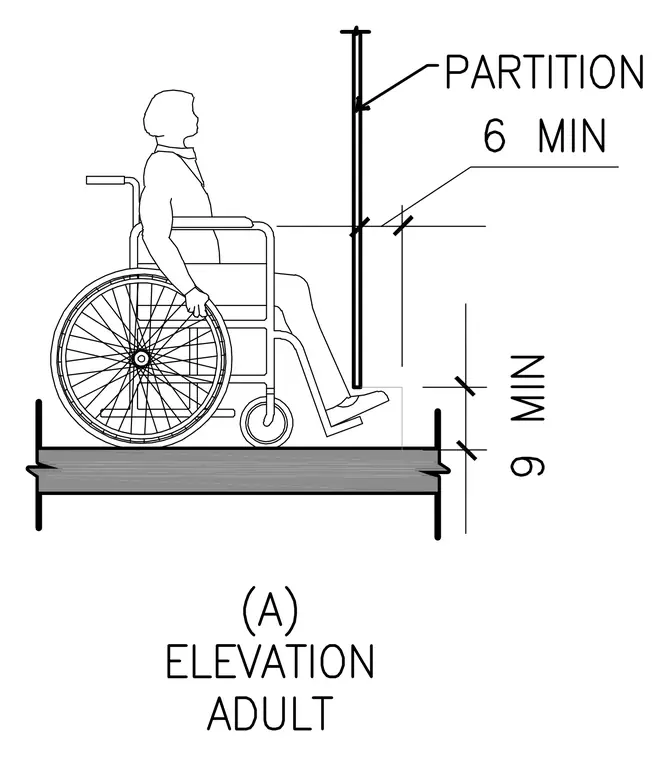

An adult in a wheelchair is positioned adjacent to a partition with specified minimum vertical clearances above the floor and footrest level. A dimension of six inches minimum is indicated above the footrest and seating reference height. A dimension of nine inches minimum is measured from the finished floor to the lower partition reference line. These dimensional criteria comply with accessibility standards for reach ranges and toe clearance.
