A-8GZVV — HANGER ROD AT UPPER LANDING

Architectural · A-8GZVV

HANGER ROD AT UPPER LANDING

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5.12
Discipline: Architectural

Materials

Gypsum / Drywall Steel Timber / Wood

Elements

Anchors / Embeds Beams Ceilings Connections / Plates Railings / Guards Reinforcing Stairs

Connections

Rebar Splice / Development Timber / Mass-Timber Connection Welded Connection

Text on the drawing

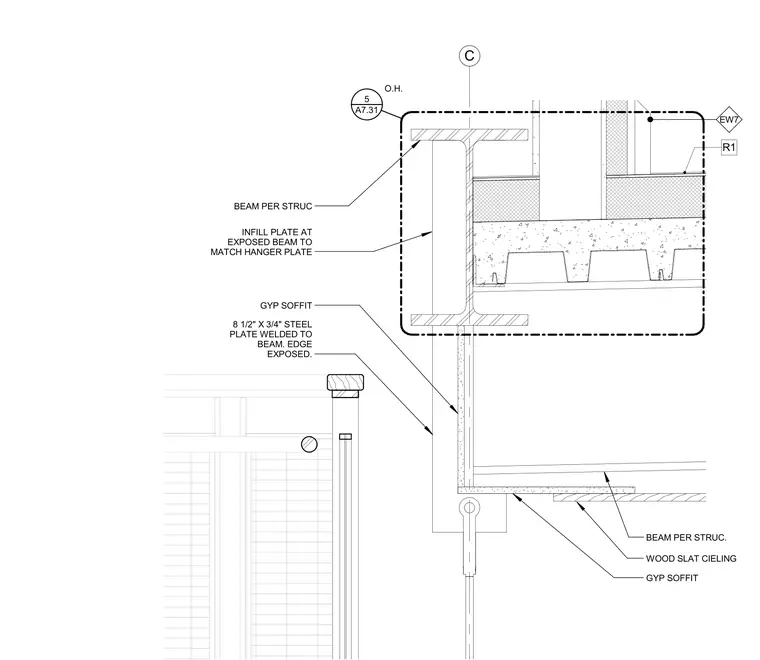

C GYP SOFFIT 8 1/2" X 3/4" STEEL PLATE WELDED TO BEAM. EDGE EXPOSED. WOOD SLAT CIELING BEAM PER STRUC EW7 GYP SOFFIT BEAM PER STRUC. A7.31 5 O.H. R1 INFILL PLATE AT EXPOSED BEAM TO MATCH HANGER PLATE
