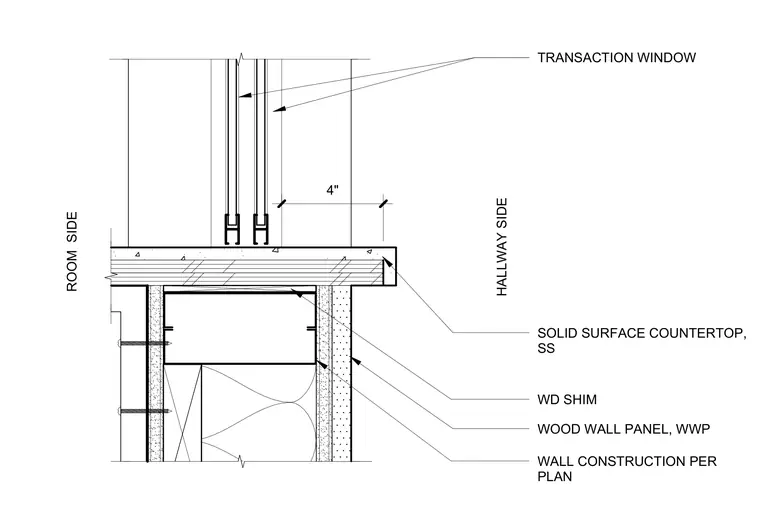

A transaction window sits atop a solid surface countertop supported by wood wall construction per plan. Wood shims level the assembly above the wood wall panel framing. The interior room side features wall construction with gypsum board and fasteners, while the hallway side transitions to the countertop edge.
SOLID SURFACE COUNTERTOP, SS WOOD WALL PANEL, WWP TRANSACTION WINDOW WD SHIM WALL CONSTRUCTION PER PLAN 4" HALLWAY SIDE ROOM SIDE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
