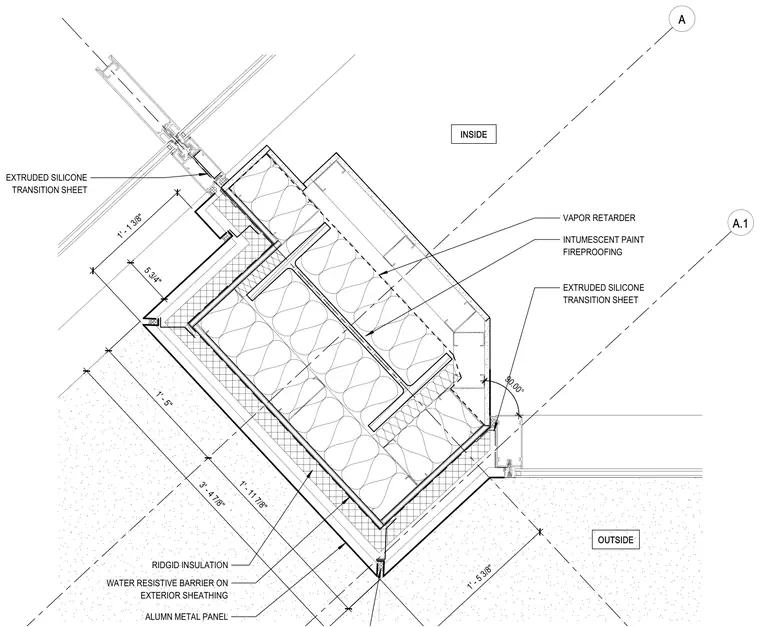

An exterior wall corner assembly integrates a structural column with intumescent paint fireproofing, a vapor retarder, and rigid insulation. The exterior envelope features an aluminum metal panel system installed over exterior sheathing and a water-resistive barrier. Extruded silicone transition sheets bridge the joint between the curtain wall framing and the building corner. The assembly details a ninety-degree exterior turn with specific dimensional clearances.
A A.1 1 ' - 1 1 7 / 8 " 1 ' - 5 " 3 ' - 4 7 / 8 " 5 3 / 4 " WATER RESISTIVE BARRIER ON EXTERIOR SHEATHING RIDGID INSULATION VAPOR RETARDER INTUMESCENT PAINT FIREPROOFING ALUMN METAL PANEL 1 ' - 5 3 / 8 " EXTRUDED SILICONE TRANSITION SHEET 1 ' - 1 3 / 8 " INSIDE OUTSIDE 9 0 . 0 0 ° EXTRUDED SILICONE TRANSITION SHEET
