Architectural · A-8GDY4

Ceiling Transition to Wall

Materials

Steel Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Ceilings Decks Bracing Insulation

Connections

Bracing Connection

About this detail

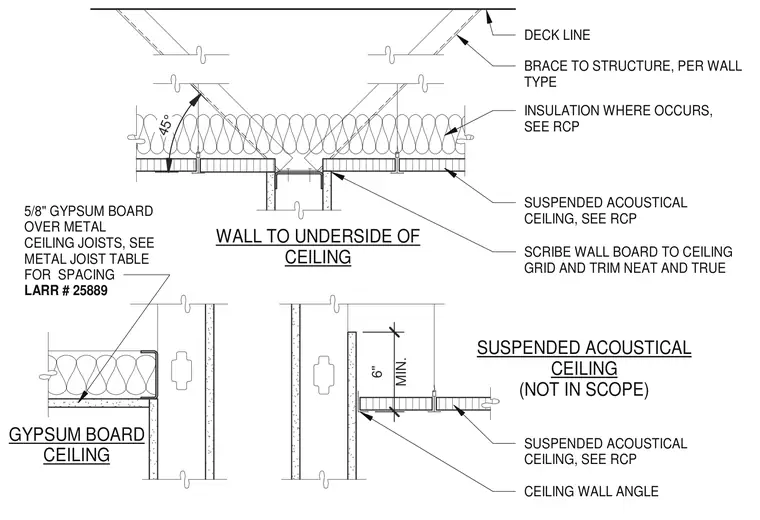

This architectural detail shows the intersection between a suspended acoustical ceiling or gypsum board ceiling and a partition wall. The gypsum board ceiling consists of 5/8-inch gypsum board over metal ceiling joists, supported at the perimeter by a ceiling wall angle. The wall board is scribed directly to the ceiling grid and finished neat and true at the underside of the ceiling deck line. Where indicated on the reflected ceiling plan, diagonal bracing connects the ceiling framing back to the overhead structure at a forty-five degree angle with intervening thermal insulation.
