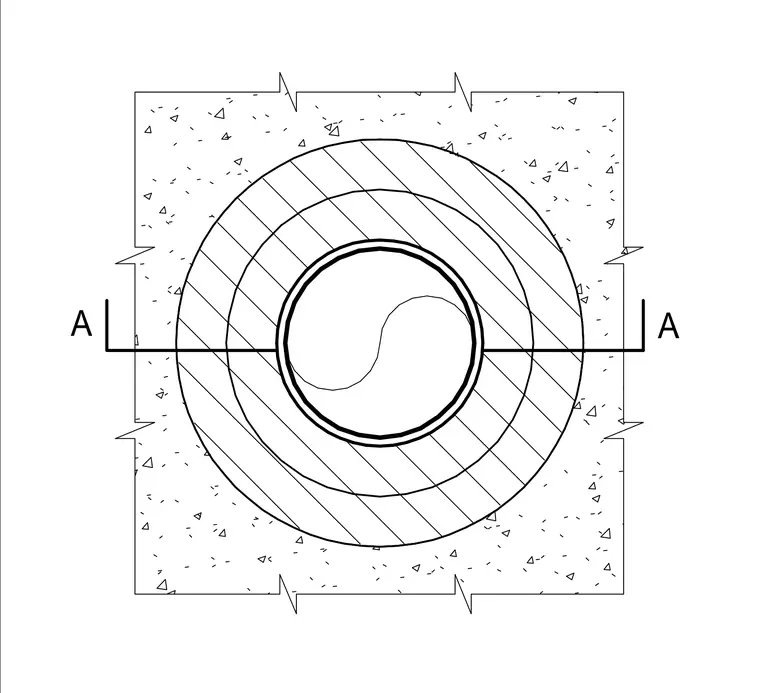

A core-drilled penetration passes vertically through a concrete floor slab, lined with a cylindrical sleeve. Concentric rings around the sleeve delineate annular sealant or packing material within the core opening. Section cut lines A-A designate the orthogonal plane of the assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
