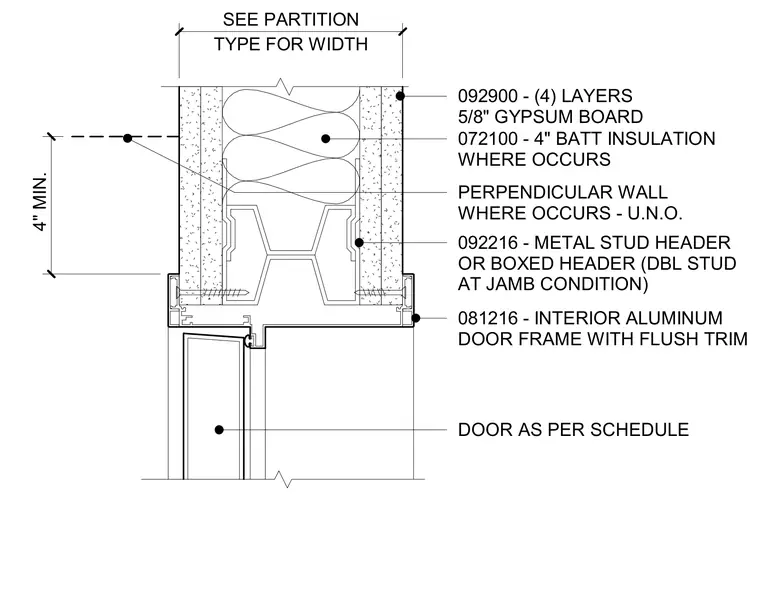

An interior aluminum door frame with flush trim wraps a cold-formed metal stud header or boxed header, with double studs installed at the jamb condition. Four layers of five-eighths-inch gypsum board face the partition on both sides, with four-inch batt insulation installed in the cavity where specified. The door leaf is installed as detailed in the door schedule.
092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081216 - INTERIOR ALUMINUM DOOR FRAME WITH FLUSH TRIM 092900 - (4) LAYERS 5/8" GYPSUM BOARD PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE TYPE FOR WIDTH SEE PARTITION 072100 - 4" BATT INSULATION WHERE OCCURS 4" MIN.
