Glazing Mullion and Partition Junction at Steel Column

Materials

Elements

About this detail

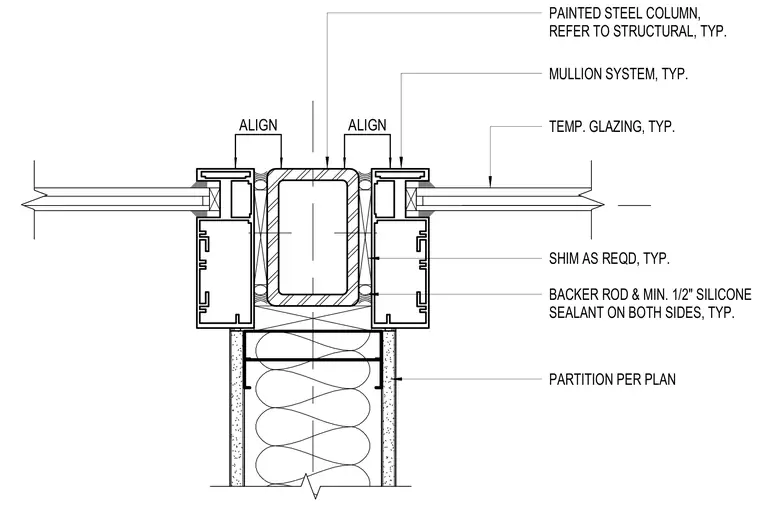

This plan detail shows a mullion system flanking a painted steel column with a partition wall abutting from below. Temporary glazing is set within the mullion framing, incorporating shims as required for alignment. A backer rod and minimum half-inch silicone sealant are applied on both sides of the joint. The interior partition is constructed per plan with alignment to the structural grid.
