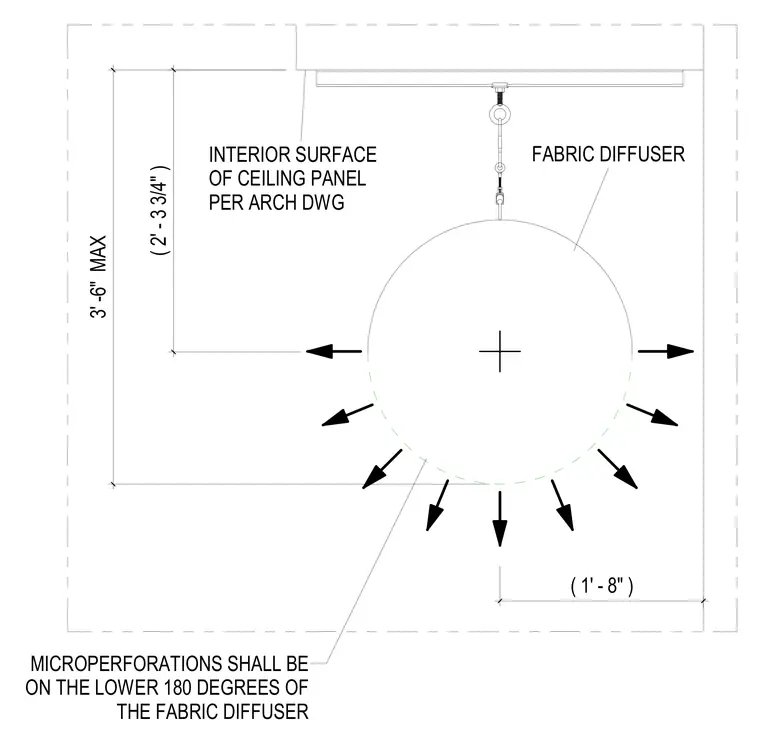

A circular fabric diffuser hangs from a suspension assembly anchored to the interior surface of the ceiling panel. The diffuser is positioned with a maximum vertical clearance of three feet six inches from the ceiling surface, maintaining a two feet three and three-quarter inch dimension to the diffuser centerline. Microperforations are restricted to the lower one hundred eighty degrees of the fabric duct circumference to direct airflow downward into the space.
( 1' - 8" ) ( 2' - 3 3/4" ) FABRIC DIFFUSER MICROPERFORATIONS SHALL BE ON THE LOWER 180 DEGREES OF THE FABRIC DIFFUSER 3' -6" MAX INTERIOR SURFACE OF CEILING PANEL PER ARCH DWG
