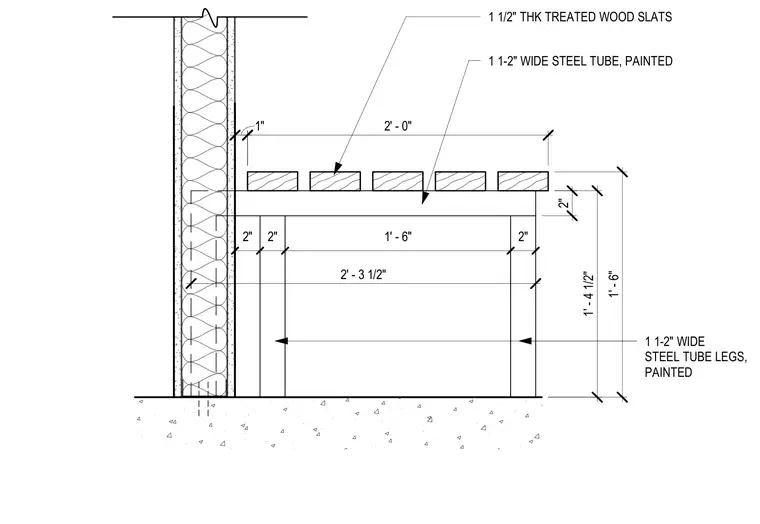

A wall-mounted bench in a shower room constructed from one and a half inch thick treated wood slats resting on painted steel tube framing. The bench frame is supported by one and a half inch wide painted steel tube legs extending down to the floor. The assembly connects to an insulated framed wall.
2' - 3 1/2" 1 1-2" WIDE STEEL TUBE, PAINTED 2' - 0" 1" 1' - 6" 2" 1' - 4 1/2" 1 1/2" THK TREATED WOOD SLATS 2" 2" 1' - 6" 2" 1 1-2" WIDE STEEL TUBE LEGS, PAINTED
